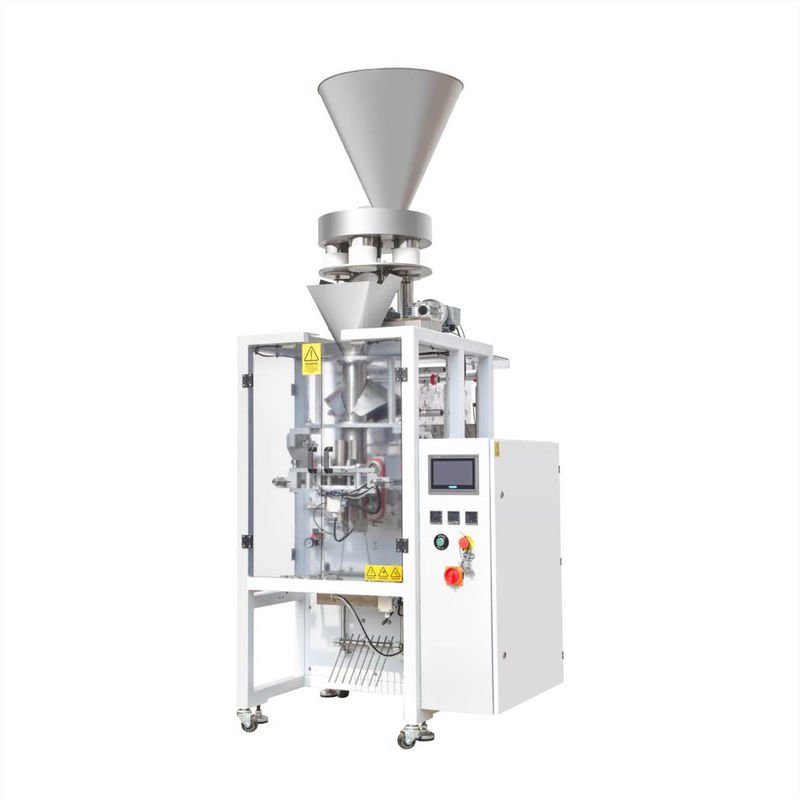

The Pack Mate PM-G50II Automatic Bag Filling Machine is a compact, production-ready pouch filling and sealing solution engineered for small-dose packaging of particles using composite packaging films. Designed for stable high-speed operation and consistent sealing quality, it supports adjustable dosing within a 1–50 ml range and is well-suited to factories seeking efficient automation with low air and gas consumption.
Product Advantages
Efficient, stable bag pulling and positioning: The roller bag pulling system driven by a Schneider servo motor delivers smooth film transport, accurate tracking, and reliable pouch forming during continuous operation.
Flexible small-dose dosing control: The measurement range is 7–50 ml with four-level adjustment, making the system adaptable to multiple SKUs and packaging sizes within the small-volume segment.
Strong sealing performance for composite films: Built for composite packaging materials, the machine offers robust heat sealing with consistent seal geometry. Horizontal sealing width is 9 mm and vertical sealing width is 7 mm to enhance package integrity and reduce leakage risk.
Low utility consumption: With gas consumption of only 0.2 m³/min and an air source pressure requirement of 6 kg, the system supports cost-effective operation while maintaining dependable pneumatic performance.
Reliable detection and registration: A JULONG optoelectronic eye improves film mark detection and positioning accuracy, supporting stable bag length control and neat appearance across batches.
High-throughput production capability: Packaging speed reaches 50–100 bags/min (gearbox ratio 1:20), enabling efficient output for high-demand lines where small sachets or pouches are required.
Industrial-grade structure: With a net weight of 180 kg, the machine is designed for workshop environments where vibration resistance, operational stability, and long service life are essential.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Automatic pouch filling and sealing machine (for particles) |
| Packaging Materials | Particles |
| Packaging Film | Composite packaging material |
| Packaging Capacity | 1–50 ml |
| Measurement Range | 7–50 ml, adjustable in four levels |
| Packaging Speed | 50–100 bags/min (gearbox 1:20) |
| Bag Pulling Method | Roller bag pulling (Schneider servo motor) |
| Cutting / Drive Method | Stepping motor for bag pulling control |
| Sealing Width | Horizontal: 9 mm; Vertical: 7 mm |
| Heat Sealing Pattern | Mesh pattern (0.8 mm spacing) or straight pattern (1.2 mm spacing) |
| Optoelectronic Eye | JULONG |
| Air Source Pressure | 6 kg |
| Gas Consumption | 0.2 m³/min |
| Machine Weight | 180 kg |
| Bag Size Capability | Bag width ≤ 85 mm; film width ≤ 170 mm; bag length ≤ 120 mm (with one forming set) |
| Measurement Accuracy | ±1–10% (depends on material characteristics and fill volume) |
Application Areas
The PM-G50II is suitable for automated small-dose pouch packaging where composite films and particulate products are used. Typical application fields include:
- Food processing: seasoning granules, sugar substitutes, small snack particles, dry food additives, and similar free-flowing particulates.
- Pharmaceutical and nutraceutical: granulated supplements and measured-dose particulate preparations (subject to site compliance requirements).
- Chemical and daily-use products: desiccant-like particles, additive granules, and other small particulate items that benefit from fast, consistent sachet packaging.
- General manufacturing: any production line requiring stable high-speed pouch forming, filling, and sealing for small particle volumes.
