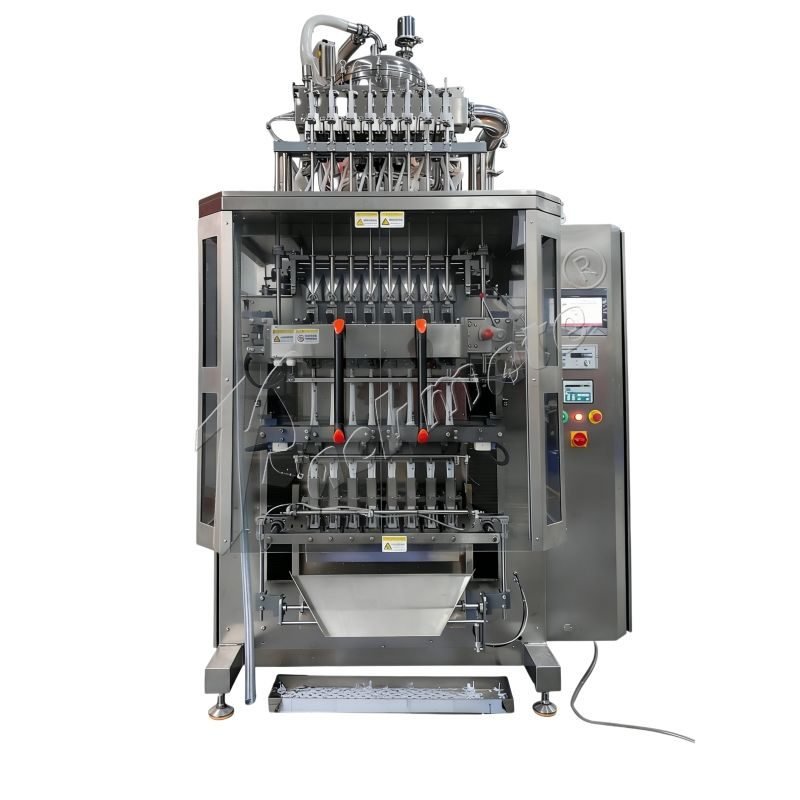

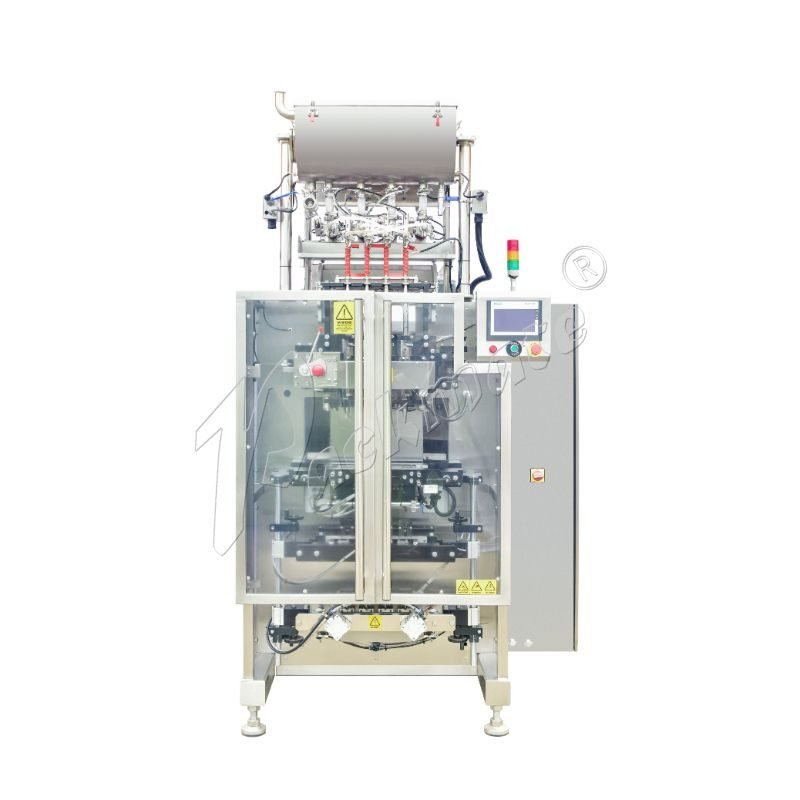

The machine is constructed with high-quality 304/316 stainless steel and features a brushed frame surface with fully welded and polished joints for durability and hygiene. Rounded corners and chamfered edges enhance safety and cleaning convenience. The equipment is equipped with three-color safety alarm lights, Panasonic safety door detection switches, and an emergency stop system to ensure safe and reliable operation.
Key Advantages
High Versatility for Multiple Products
This machine is designed for flexible packaging applications and can be equipped with various metering systems such as liquid pumps, powder fillers, granule dispensers, or multi-head weighers. It adapts easily to different product types and packaging requirements.
High-Speed Multi-Lane Production
The 8-lane strip bag design significantly increases production capacity. With packaging speeds reaching up to 120 packs per minute, it greatly improves efficiency and productivity compared to traditional single-lane packaging equipment.
Durable Hygienic Industrial Design
Made entirely from 304 or 316 stainless steel, the machine meets strict hygiene standards. The fully welded and polished frame ensures long-term durability, while safety sensors, alarm lights, and emergency stop systems protect operators and equipment.
Technical Parameters
| Parameter | Specification |
|---|---|
| Packaging Material | According to customer requirements |
| Packaging Range | According to customer requirements |
| Packaging Speed | 40–45 cuts/min (actual speed depends on material quantity) |
| Packaging Film Width | 640 mm |
| Bag Size | Bag width 35 mm × Length 50–150 mm |
| Sealing Method | Side seal |
| Back Seal Width | 10 mm straight line (1.0 mm spacing) |
| Horizontal Seal Width | 10 mm straight line (1.0 mm spacing) |
| Cutting Method | Servo tooth cutting (cutting at horizontal seal center) |
| Bag Pulling Method | Servo motor synchronous belt pulling |
| Horizontal Sealing | Servo motor horizontal sealing following bag pulling |
| Vertical Sealing | Servo motor roller pressure sealing |
| Operating Voltage | 380V / 50Hz (power varies depending on lane number) |
Customizable Configurations
| Configuration Type | Custom Options |
|---|---|
| Metering System | Liquid pump, powder filler, granule filler, multi-head weigher |
| Packaging Material | Various composite films according to product needs |
| Lane Quantity | Customizable lane configuration |
| Bag Length | Adjustable according to product specification |
| Safety Features | Safety door detection, emergency stop system, alarm lights |
Application Industries
This multi-lane strip bag packaging machine is widely used in industries that require high-speed packaging of small sachets, including:
- Food and seasoning packaging
- Sauce and condiment packaging
- Pharmaceutical and traditional medicine packaging
- Health product packaging
- Chemical powder and granule packaging
It is ideal for products such as chili powder, sauces, liquid seasonings, traditional Chinese medicine granules, peanuts, and other small-dose products requiring efficient multi-lane packaging.
