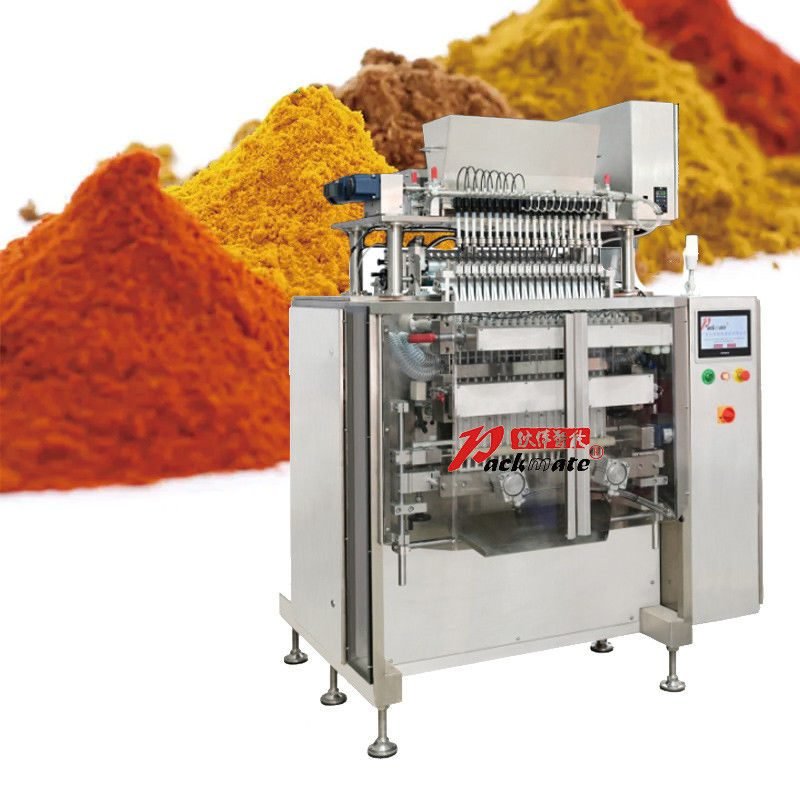

Snus Packing Machine (Automatic Multi-Lane Stick Sachet Packing System)
The Snus Packing Machine is a fully automatic, multi-lane stick sachet solution designed for high-speed dosing, forming, filling, sealing, and cutting of small-format packs. It is engineered for powder products such as arabic gum, vitamin and collagen blends, protein mixes, cocoa, coffee, milk powder, and hydration drink mixes, while also supporting granule and liquid configurations through dedicated models. With stable servo-driven film transport and precise metering coordination, the machine delivers consistent sachet quality for three-side or four-side sealing formats, making it an efficient choice for modern food, pharmaceutical, and daily chemical packaging lines.
Product Advantages
High-speed multi-lane productivity: Multi-track structure supports scalable output for stick packs, helping manufacturers meet large-volume production targets with compact footprints. Depending on product type and configuration, typical speeds reach up to 80–120 bags per minute.
Full-servo film pulling for accuracy: Servo motor bag pulling enables high precision film control and stable operation. Bag length is controlled accurately to reduce waste, improve registration performance, and maintain uniform pack dimensions across lanes.
Enhanced sealing performance: The upgraded heat sealing mechanism (servo controlled) provides clear sealing patterns, strong seal integrity, and lower operating noise. This improves shelf-life performance and reduces the risk of leakage or seal failure for fine powders.
Flexible cutting options: An independent rotary cutter makes it easy to change bag length and adjust cutter position. Multiple cutting styles can be selected to match market preferences, including rounded corners, sawtooth, and flat cutting.
Stable synchronization of filling and packing: The metering system is synchronized with the main machine to ensure accurate feeding at different running speeds, supporting consistent weight/volume control and smooth output.
Broad packaging compatibility: Designed for roll-film forming and compatible with common composite laminates used for stick packs and sachets, including structures such as polyester/aluminum foil/polyethylene, enabling strong barrier performance and premium appearance.
Technical Specifications
| Model | DS100G | DS100P | DS100L |
| Applicable Product Type | Granule | Powder | Liquid |
| Packaging Format | Multi-lane stick sachet / small pouch; three-side seal or four-side seal | ||
| Filling Range | 1–50 ml (product-dependent) | ||
| Production Speed | 80–120 bags/min | 70–110 bags/min | 70–100 bags/min |
| Max Film Width | Max 170 mm | ||
| Bag Width Range | 25–85 mm | ||
| Bag Length Range | 40–120 mm | ||
| Cutting Styles | Rounded corner cutting / Sawtooth cutting / Flat cutting | ||
| Film Roll / Core | Core diameter 75 mm; max film outer diameter 320 mm | ||
| Film Thickness | 0.04–0.10 mm | ||
| Film Material | Composite laminates (e.g., Polyester / Pure aluminum foil / Polyethylene) | ||
| Power Specification | 220V, 1 phase, 3 kW | 220V, 1 phase, 4 kW | 220V, 1 phase, 3.5 kW |
| Air Requirement | 0.7 MPa; 0.6 m³/min | ||
| Machine Dimensions (L×W×H) | 1300 × 1300 × 2650 mm | 1300 × 1300 × 2550 mm | 1300 × 1300 × 2500 mm |
| Equipment Weight | Approx. 350 kg | ||
| Performance may vary based on film structure and actual product characteristics; final configuration and parameters should be confirmed for the specific application. | |||
Product Application Fields
Food & Beverage powders: milk powder, coffee, cocoa, chocolate powder, protein powder, hydration drink mix, energy powder, vitamin drink powder, collagen blends, and other nutritional supplements in stick pack formats.
Pharmaceutical & health products: functional powder sachets requiring accurate dosing, reliable sealing, and clean pack appearance for retail distribution.
Daily chemical products: detergent and laundry powder sachets as well as other fine powder formulations used in household or personal care categories.
Packaging types supported: multi-lane stick packs and sachets made from roll film; applicable to composite packaging materials. The system can be configured to match different lane counts (e.g., 4/6/8/10 lanes) according to required throughput and sachet size.
