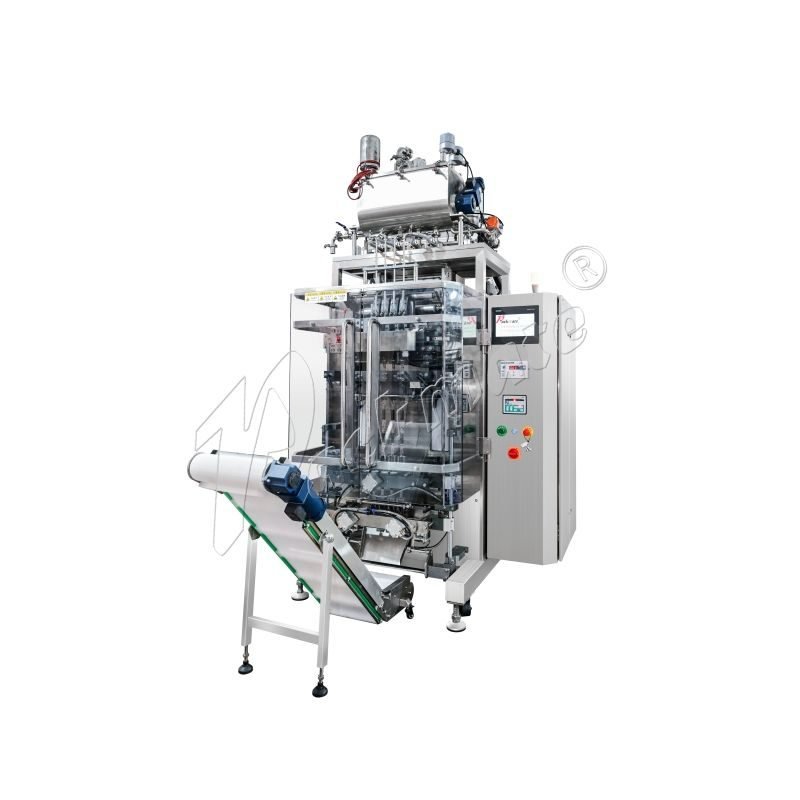

The multi-lane packaging machine supports customized lane configurations including 2, 4, 6, 8, 10, and 12 lanes to meet different production requirements. Built with food-grade 304/316 stainless steel, the machine ensures durability, hygiene, and long service life. Full servo motor control improves accuracy, stability, and packaging speed, making it suitable for continuous industrial production.
Key Advantages
High Efficiency Multi-Lane Production
The machine can run multiple packaging lanes simultaneously, greatly increasing output compared with traditional single-lane machines. Each lane can achieve speeds of 30–45 bags per minute, maximizing production efficiency and reducing manufacturing time.
Flexible Configuration and Easy Adjustment
This machine supports multiple lane configurations and can be easily adjusted to different bag sizes, filling volumes, and packaging materials. It is compatible with granules, powders, and other materials using different metering systems.
Stable Servo Control System
Equipped with a full servo control system and high-precision components, the machine ensures smooth operation, accurate bag pulling, and consistent sealing quality. This reduces machine downtime and ensures reliable long-term production.
Technical Parameters
| Parameter | Specification |
|---|---|
| Packaging Materials | Granules / Powder |
| Packaging Range | 2–6 g |
| Measuring Accuracy | ±5% (depending on material and filling volume) |
| Packaging Speed | 30–45 cuts/min × 2–12 lanes |
| Packaging Film Width | 320 mm |
| Bag Size | Bag width 24 mm × Bag length ≤ 177 mm |
| Sealing Method | Twist-edge sealing |
| Back Seal Width | 5 mm, plain |
| Horizontal Seal Width | 9 mm, single-sided texture with vertical stripes (1.5 mm spacing) |
| Cutting Method | Irregular rounded corner cutting with independent cutter |
| Easy Tear Opening | One-cut easy tear opening (optional) |
| Photoelectric Sensor | LX101 photoelectric |
| Bag Pulling Method | Servo motor synchronous belt bag pulling |
| Packaging Film | Composite packaging materials |
| Operating Voltage | 380V / 50Hz three-phase (12–15 KW depending on lanes) |
| Air Source Pressure | 6 Kg |
| Air Consumption | 1 m³/min |
| Machine Weight | 800 KG |
Customizable Options
| Customization Type | Options |
|---|---|
| Lane Configuration | 2 / 4 / 6 / 8 / 10 / 12 lanes |
| Metering System | Granule cup filler, powder filler, liquid pump |
| Bag Size | Custom bag width and length |
| Packaging Film | Various laminated or composite films |
| Easy Tear Feature | Optional easy tear opening |
| Coding System | Date coding or batch printing system |
Application Industries
This multi-lane granule packaging machine is widely used in industries requiring high-speed small sachet packaging, including:
-
Food and beverage industry
-
Daily chemical products
-
Pharmaceutical and healthcare products
-
Chemical and industrial materials
It is suitable for packaging products such as sugar, salt, seasoning granules, coffee powder, spices, pharmaceutical granules, detergent powder, and other small-dose materials requiring efficient automated packaging.
