Product Introduction

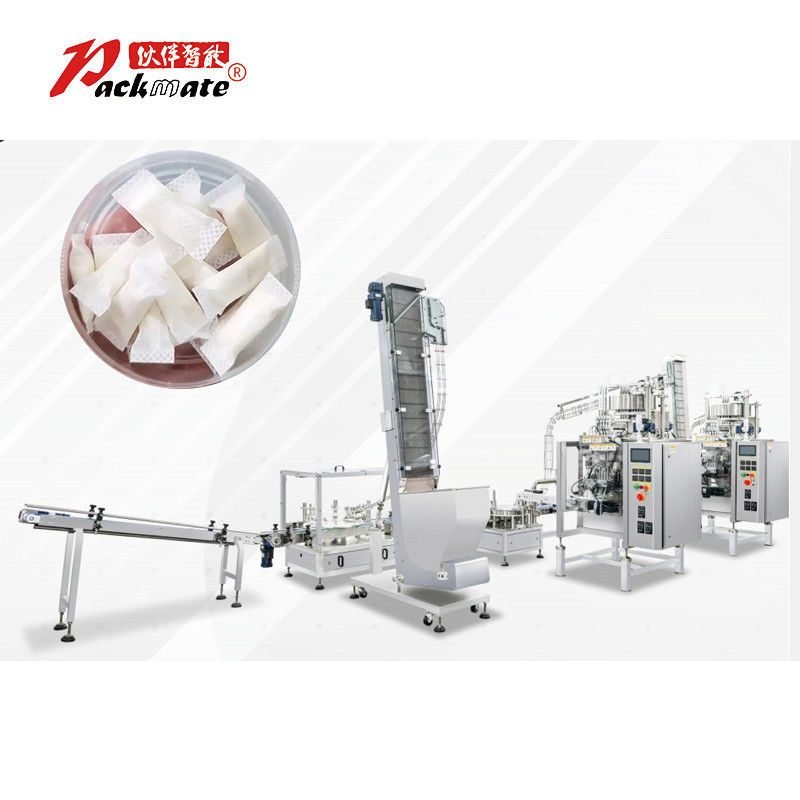

The Pack Mate M180L4-SYB is a fully automatic, high-speed 4-lane snus pouch packaging machine engineered for granules and powders. Designed around a stable back-seal bag-making structure and a precision dosing system, it integrates forming, measuring, filling, heat sealing, and flat cutting into one continuous process. The machine is built to deliver consistent pouch quality and accurate portion weights for snus products, while keeping operation simple through a PLC control platform and a 7-inch touch-screen interface. With multi-voltage compatibility (220V/380V) and a compact industrial footprint, it is well suited for manufacturers seeking scalable output, repeatable sealing performance, and efficient changeover for different snus portion requirements.
Product Advantages
4-Lane High-Speed Output for Higher Throughput
The 4-in-1 multi-lane design runs four columns simultaneously, significantly improving production capacity while maintaining stable pouch forming and cutting. It supports continuous operation for factories targeting large-volume snus portion packaging without adding extra lines.
Accurate Dosing with Measuring Cup Backflow Metering
The measuring cup backflow metering system is designed to dose small targets precisely (0.4–0.6 g/bag). By controlling backflow during dispensing, it helps reduce spillage, improves weight consistency, and supports cleaner filling for granular or powder-like materials used in snus portions.
Clean, Secure Heat Sealing for Freshness Protection
Heat sealing creates reliable closure strength to help protect product freshness and reduce contamination risk during storage and distribution. The back sealing form is designed with no pattern on the back, and the left/right sides are sealed cleanly to meet typical snus pouch presentation requirements.
Hygienic Stainless-Steel Construction
Key machine structure is manufactured in stainless steel to support hygiene-focused production environments. The robust frame and corrosion-resistant surfaces are suitable for demanding daily operation and easier routine cleaning.
Operator-Friendly PLC Control with 7-Inch HMI
A PLC control system with a 7-inch touch screen enables intuitive parameter setting, monitoring, and adjustment. This reduces training time and supports stable, repeatable packaging performance across shifts.
Flexible Power Configuration for Global Deployment
Dual voltage options (220V/380V) allow the machine to be deployed in different regions and plants, simplifying installation planning and improving overall equipment adaptability.
Technical Specifications
| Item | Specification |
|---|---|
| Model | M180L4-SYB (Automatic) |
| Machine Type | Fully automatic 4-lane pouch packaging machine (granule/powder), back-seal structure |
| Control System | PLC + HMI |
| Touch Screen | 7 inch |
| Filling Type | Measuring cup backflow metering |
| Packaging Type | Pouch |
| Sealing Type | Heat sealing |
| Sealing Form | No pattern on the back; left and right sealed |
| Packaging Film Width | 120 mm |
| Dosage / Bag | 0.4–0.6 g/bag |
| Packaging Speed | 30–45 bags/min (single column) × 4 columns |
| Machine Dimensions (L×W×H) | 1200 × 800 × 1800 mm |
| Main Material | Stainless steel |
| Power Supply | 220V / 380V |
| Installed Power | 3 kW |
Application Fields
This machine is designed for snus portioning and pouch packaging where consistent small-dose filling and stable sealing are required. Typical applications include:
- Snus pouch production lines for granular snus and powder-like formulations (as per sample)
- High-output multi-lane packaging workshops aiming to increase capacity without expanding floor space
- Manufacturers requiring hygienic stainless-steel equipment for regulated production environments
- Facilities that need reliable pouch forming, heat sealing, and flat cutting for retail-ready snus portions
