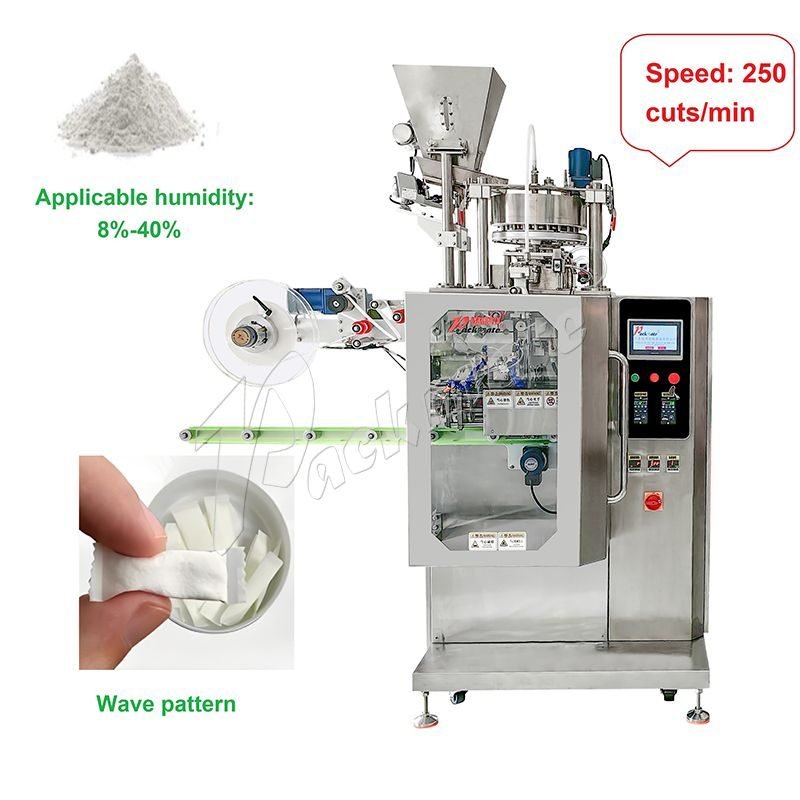

Our fully automatic single-lane packaging machine is designed for oral nicotine pouches, combining high speed, stability, and formula tolerance. It efficiently handles materials with moisture content between 8% and 40%, preventing blockage and bridging. Constructed with GMP-compliant 304/316 stainless steel, it integrates advanced servo control, smart temperature modules, and an optional vision inspection system to ensure reliable and hygienic operation.
Key Advantages
Smooth Continuous Production
The machine features a unique material conveying system that eliminates blockages and bridging caused by high moisture or sugar content. This ensures uninterrupted material flow and allows for continuous operation, greatly reducing production downtime and improving overall efficiency.
High Formula Tolerance
Capable of handling product moisture levels from 8% to 40%, the machine maintains stable packaging precision and perfect sealing. It allows manufacturers to switch between different formulas or develop new products without compromising performance, supporting both small and large-scale production needs.
High-Speed Performance With Intelligent Protection
Operating at speeds up to 220 bags per minute, this machine guarantees consistent bag appearance, size, and sealing quality. The intelligent cutter protection system and optional vision inspection prevent defects, extend component life, and minimize maintenance costs, delivering both efficiency and quality simultaneously.
Technical Parameters
| Parameter | Specification |
|---|---|
| Packaging Material | Moist granules (as per sample) |
| Packaging Capacity | 0.55 g/bag |
| Metering Accuracy | ≤ ±10% |
| Packaging Speed | 180–220 bags/min |
| Bag Size | Length: 35–50 mm, Width: 13 mm, Film Width: 30 mm |
| Sealing Method | Back sealing 45° oblique mesh 1.2, inner & outer overlap |
| Sealing Width | Vertical: 4 mm, Horizontal: 8 mm |
| Power Supply | AC 220V/50HZ, 3 KW |
| Air Consumption | 6 Kg, 0.6 m³/min |
| Control System | Inovance 7” color touchscreen + PLC |
| Operating Language | Chinese |
| Material Contact Parts | 304 stainless steel |
| Frame & Electrical Box | 304 stainless steel / aluminum alloy |
| Dust Collection | Above horizontal seal, included |
Customizable Parameters
| Item | Specification |
|---|---|
| Metering Unit | Rotary metering, humidity 8%-40% |
| Metering Range | 0.4–0.6 g/bag |
| Metering Adjustment | Adjustable measuring cup |
| Drive Method | Servo motor |
| Exterior Material | 304 stainless steel or aluminum alloy |
| Material Contact Parts | 316 stainless steel |
| Easy Clean Design | Yes, disassemblable |
Application Industries
This high-speed single-lane nicotine pouch packing machine is suitable for:
-
Oral nicotine and snus pouches
-
Herbal granules and powdered supplements
-
Pharmaceutical powders and small-dose liquid-solid mixtures
-
Nutraceutical and functional food products
Its robust and precise design allows stable production across a variety of materials, ensuring high-quality packaging for multiple industries requiring hygienic, continuous, and efficient operations.
