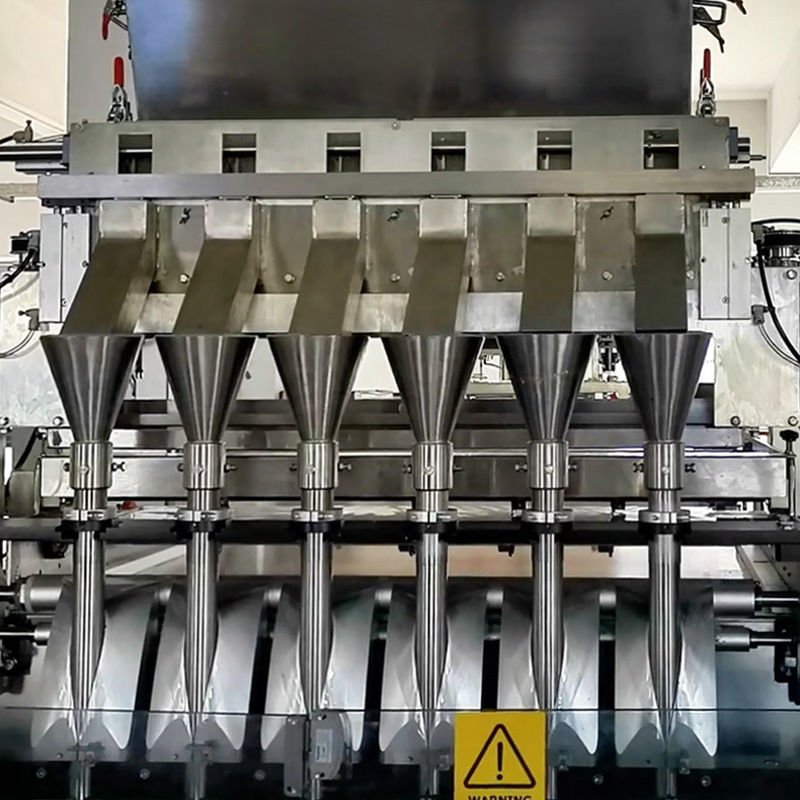

High-Speed Automatic Pouch Packing Machine (Particles / Powders / Liquids)
Designed for stable, continuous, and high-output pouch packaging, this high-speed automatic pouch machine integrates reliable electrical components, precise film tracking, and an efficient sealing and pulling structure to support multi-lane production. It is engineered to form, fill, and seal small-size pouches with consistent quality across particles, powders, and liquids (configured according to product requirements), making it a practical choice for manufacturers seeking speed, accuracy, and repeatable performance in everyday operation.
Product Advantages
Reliable Control & Electrical Architecture
The machine is built with Schneider or OMRON electrical components to enhance operational stability, improve response consistency, and support long-term industrial use. The coordinated control design helps maintain repeatable sealing and cutting actions at high cycling speeds.
High-Speed Multi-Column Output
With a packaging speed of 30–60 cuts per minute multiplied by the number of lanes (columns), the system is suited to high-throughput lines. Actual speed is determined by the material characteristics and dosing/measurement behavior during production.
Accurate Film Tracking and Registration
A JULONG photoelectric “ronic eye” supports registration control for printed films and stable cutting alignment. This improves pouch consistency, reduces material waste, and helps maintain a clean appearance across continuous runs.
Stable Bag Pulling and Sealing Synchronization
The motor crank type heat-sealing bag pulling system uses an encoder to control sealing action, helping synchronize film movement with sealing and cutting. This design supports consistent pouch length control and stable sealing quality at higher speeds.
Material-Safe Construction
All product-contact parts are made of Stainless Steel 304, supporting hygienic handling and easier cleaning for a wide range of food, chemical, and daily-use materials.
Flexible Material Compatibility
The machine is compatible with composite packaging films such as BOPP/PE, enabling users to select film structures based on barrier needs, sealing performance, shelf-life requirements, and product positioning.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | High-Speed Automatic Pouch Packing Machine (multi-column) |
| Packaging Materials | Particles, powders, liquids (depending on packaging requirements) |
| Bag Pulling Method | Motor crank type heat-sealing bag pulling (encoder controls sealing action) |
| Sealing Method | Twisted edge adhesive sealing |
| Horizontal Sealing Method | AirTAC cylinder horizontal sealing |
| Back Sealing Width | 4–8 mm, no pattern |
| Horizontal Sealing Width | 8–10 mm, single-sided diagonal mesh pattern (1 mm spacing) |
| Easy-Tear Option | Point-shaped easy-tear or double easy-tear (independent easy-tear device) |
| Packaging Capacity | 1–50 ml |
| Measurement Accuracy | ±1% to ±10% (depends on material type and dosage) |
| Packaging Speed | 30–60 cuts/min × columns (depends on measured material situation) |
| Applicable Columns | 4–12 columns (determined by bag size; bag width specification cannot be changed) |
| Bag Making Range | Bag width 20–67 mm × bag length ≤150 mm or ≤180 mm (choose one) |
| Packaging Film | Composite packaging material (e.g., BOPP/PE) |
| Ronic Eye | JULONG |
| Gas Source Pressure | 5–6 kg |
| Gas Consumption | 2 m³/min |
| Working Voltage | 380 V / 50 Hz, single-phase, 10–20 kW (depending on number of lanes/trains) |
| Electrical Components | Schneider or OMRON |
| Machine Weight | 700 kg |
| Horizontal Sealing Leak-Proof Line | 1 mm (only applicable to liquid packaging) |
| Forming Reference | MAX 600 mm (standard with 1 set of bag-making specifications, no flash) |
Application Fields
Food & Beverage
Suitable for small-dose sachets and pouches for products such as snack particles, seasonings, sugar-like granules, powders, and liquid condiments where stable sealing and consistent pouch dimensions are required.
Daily Chemicals & Personal Care
Supports packaging of liquid and semi-liquid daily-use products (configured accordingly), including sample-size pouches and single-use portions that benefit from accurate registration and clean sealing.
Pharmaceutical & Health-Related Packaging
Applicable for portion-controlled powders or granules (subject to required compliance configurations), where repeatability, clean product-contact surfaces, and controlled dosing behavior are important.
Chemical and Industrial Materials
Can be used for packaging compatible powders and particles in industrial environments, leveraging the robust structure, stable pneumatic sealing system, and multi-lane throughput for efficient batch production.
