Product Introduction

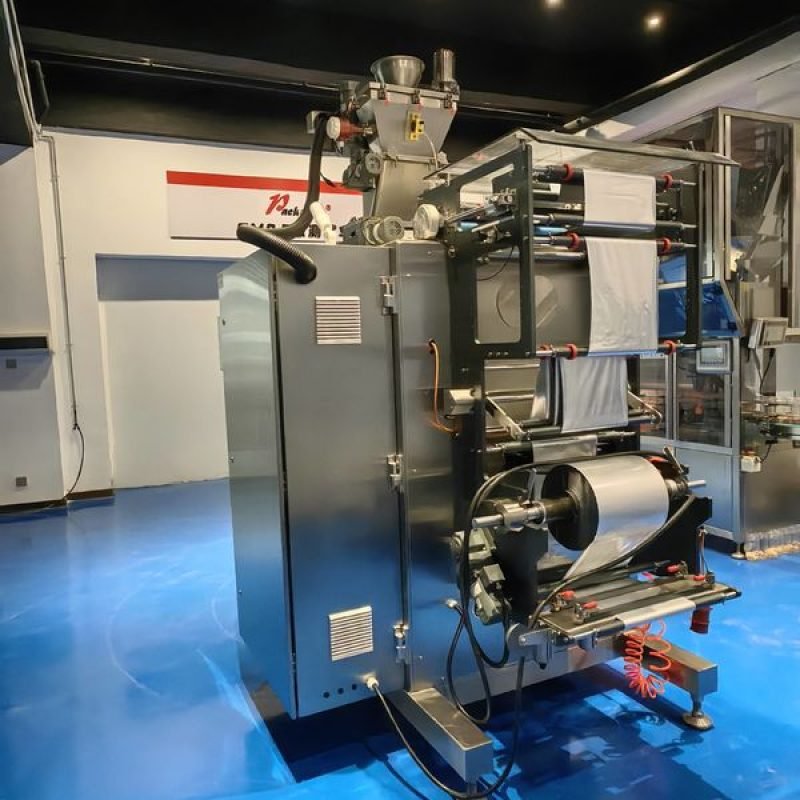

The DS450-4G/P/L Automatic Bag Packing Machine is a multi-lane pouch forming, filling, and sealing solution designed for high-efficiency small-dose packaging. Built for particles, powders, and liquids (configured according to product requirements), it combines stable film pulling with precise sealing control to deliver consistent pouch quality. For liquid applications, the machine produces a horizontal sealing leak-proof line up to 1 mm, supporting reliable pack integrity. With a 1–50 ml dosing range and flexible lane configuration, it is well suited for mass production of single-serve and sample-size sachets where speed, repeatability, and safety compliance are essential.
Product Advantages
Reliable Sealing for Liquid and Non-Liquid Products
The twisted-edge adhesive sealing structure helps create firm seals across a wide range of packaging materials and product types. For liquid packaging, the horizontal sealing design supports enhanced leak resistance with a dedicated leak-proof line specification.
Stable Film Handling and Accurate Sealing Control
A motor crank-type heat-sealing bag pulling system, paired with an encoder that controls sealing action, ensures synchronized motion between film pulling and sealing. This improves pouch consistency, reduces mis-seals, and supports continuous high-speed production.
Clean Cutting and Professional Pack Appearance
Round-corner cutting with an independent cutting device delivers neat edges and a premium look while minimizing waste to approximately 2–3 mm per cut, helping reduce film loss over long production runs.
Flexible Multi-Lane Output
The machine supports 4–9 columns (lanes), selected based on pouch size. This multi-lane format increases throughput without sacrificing seal quality, making it suitable for scale-up and varied SKU planning.
Enhanced Safety Configuration
Standard safety provisions include three-color alarm lights, Panasonic safety door detection switches, and an emergency stop switch. Heating zones and mechanical action positions are required to be clearly marked with safety signage, supporting safer daily operation and maintenance.
Technical Specifications
| Item | Specification |
|---|---|
| Model | DS450-4G/P/L |
| Packaging capacity | 1–50 ml |
| Applicable materials | Particles, powders, liquids (depending on packaging requirements) |
| Measurement accuracy | ±1% to ±10% (depending on material type and fill quantity) |
| Columns (lanes) | 4–9 columns (determined by bag size; bag width specification cannot be changed) |
| Sealing form | Twisted edge adhesive sealing |
| Horizontal sealing | Sealing width 8–10 mm; single-sided diagonal mesh pattern (1 mm spacing) |
| Horizontal sealing leak-proof line | Up to 1 mm (only applicable to liquid packaging) |
| Back sealing | Width 4–6 mm; no pattern |
| Film width | Max. 450 mm (standard with 1 set of bag-making specifications; no flash) |
| Bag pulling method | Motor crank-type heat-sealing bag pulling (encoder controls sealing action) |
| Cutting method | Round-corner cutting; approx. 2–3 mm waste; independent cutting device |
| Packaging speed | 30–60 cuts/min × 4 columns (actual speed depends on product characteristics) |
| Photoelectric sensor | JULONG dual-color photoelectric |
| Electrical components | Schneider or OMRON |
| Power supply | 380 V / 50 Hz, three-phase, 8–18 kW (depending on number of columns) |
| Gas source pressure | 7–8 kg |
| Gas consumption | 1.8 m³/min |
| Basic safety configuration | Three-color safety alarm lights, Panasonic safety door detection switches, emergency stop switch; safety signs required at heating and mechanical action positions |
| Machine weight | 600 kg |
Application Areas
This automatic pouch forming and sealing machine is widely used for small-dose sachet production across industries that demand clean appearance, stable sealing, and efficient output. Typical applications include liquid samples and single-serve packs, as well as powders, granules, and particle products where multi-lane high-speed packaging is required. It is suitable for food and non-food packaging lines, supporting flexible production for trial packs, promotional sachets, and daily high-volume packaging tasks.
