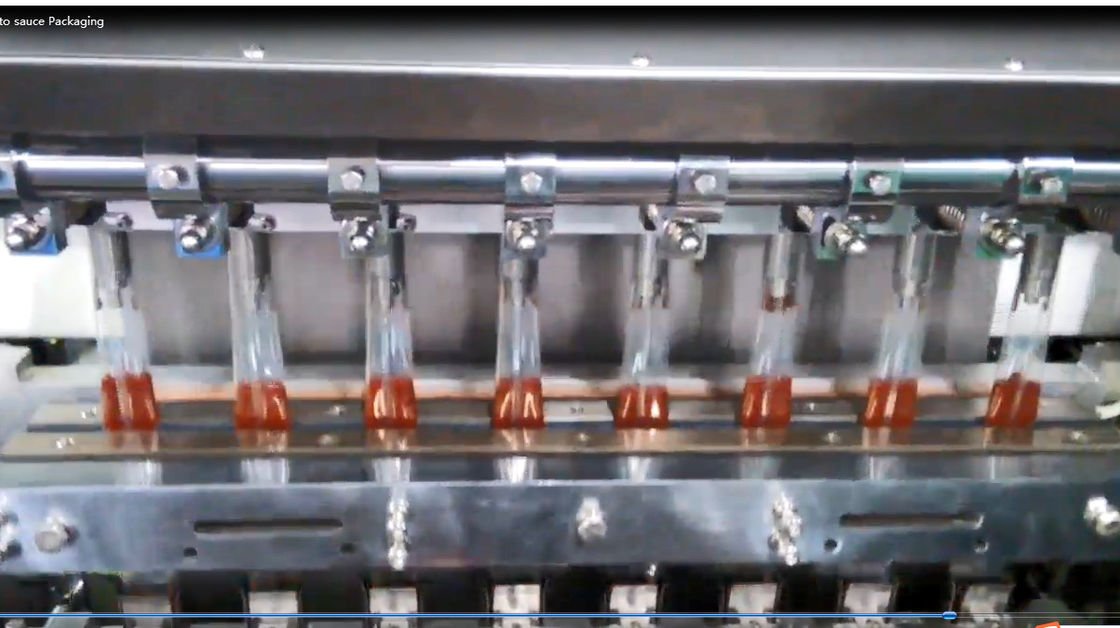

The High-Speed Multi-Lane Automatic Tomato Sauce Packaging Machine is designed for efficient, continuous sachet packing of tomato sauce and similar viscous condiments. Built for stable high-output production, it combines multi-axis servo control, precise temperature management, and reliable pneumatic and bearing components to deliver consistent bag forming and sealing performance. With broad film compatibility and an integrated computerized linear weighing system, it supports fast changeovers and dependable operation in demanding food packaging environments.
Product Advantages
High-speed multi-lane production: Optimized for rapid packaging cycles, delivering strong throughput while maintaining stable sealing quality. Output speed can reach up to 55 bags per minute depending on product characteristics and target weight.
Multi-axis servo independent drive: The main unit adopts independent multi-axis servo motion control for fast response, precise positioning, and smoother high-speed operation.
Stable high-speed control system: The servo motor system uses KOSSI (KoSI) components to enhance operational stability during continuous high-speed running.
User-friendly touch interface: A touch screen provides parameter setting, material/bag status display, and convenient specification changes. Key adjustment positions are marked with rotation-angle references to reduce setup time and improve repeatability.
Reliable sealing consistency: Bag making and final sealing are governed by an Autonics temperature control module, keeping temperature deviation within ±1°C to ensure consistent sealing across pre-made bags.
Durable, proven component selection: Pneumatic parts are sourced from Taiwan Airtac and bearings from Japan NSK, improving reliability, service life, and long-term production stability.
Convenient corner insertion adjustment: Corner insertion is performed via a rotary cylinder (EASUN), enabling easier alignment and faster adjustment.
Hygienic stainless-steel construction: Key contact structures and the weighing unit are made from 304 stainless steel to meet food-packaging hygiene needs and simplify cleaning.
Technical Specifications
| Product Type | High-speed multi-lane automatic tomato sauce packaging machine (with computerized linear scale) |
| Total Power | 8 kW |
| Power Supply | AC 220V / 50Hz |
| Air Pressure / Consumption | 6 kg/cm² (gas consumption: 600 L/min) |
| Machine Dimensions (L×W×H) | 1420 × 988 × 1500 mm |
| Machine Weight | 650 kg |
| Compatible Packaging Materials | OPP/CPP, PT/PE, KOP/CPP aluminized film, aluminum film |
| Drive & Control (Main Unit) | Multi-axis servo independent drive; KOSSI (KoSI) servo system; touch-screen parameter setting |
| Temperature Control | Autonics temperature control module; deviation ±1°C |
| Pneumatic / Bearing Brands | Airtac (Taiwan) pneumatic components; NSK (Japan) bearings |
| Measuring Method | Computerized linear scale (linear scale packaging) |
| Scale Model / Material | LWS4/3 waterproof computerized linear scale; 304 stainless steel (includes installation bracket) |
| Weighing Range | 10–2000 g |
| Weighing Speed | ≤ 55 bags/min (depending on pack weight and material characteristics) |
| Weighing Accuracy | X (0.5) grade; approx. ±0.2 to 2 g (depending on material conditions) |
| Hopper Capacity | 300 ml |
| Scale Drive Mode | Stepper motor |
| Operating Interface | Inovance 7-inch color touch screen |
| Body Material | 304 stainless steel |
| Scale Bucket Material | 304 flat stainless steel |
| Scale Power | AC 220V / 50Hz, 1 kW / 10A |
| Packaging Weight (Scale Unit) | 150 kg |
Application Areas
This machine is suitable for automated sachet packaging of tomato sauce and other viscous or semi-viscous food products. Typical applications include ketchup and tomato-based condiments, sauce and seasoning packs for catering and takeaway, single-serve portions for hotels and airlines, and high-volume condiment packaging lines for food factories and co-packing operations. It can also be applied to similar products requiring stable sealing, consistent dosing, and high-speed multi-lane output.
