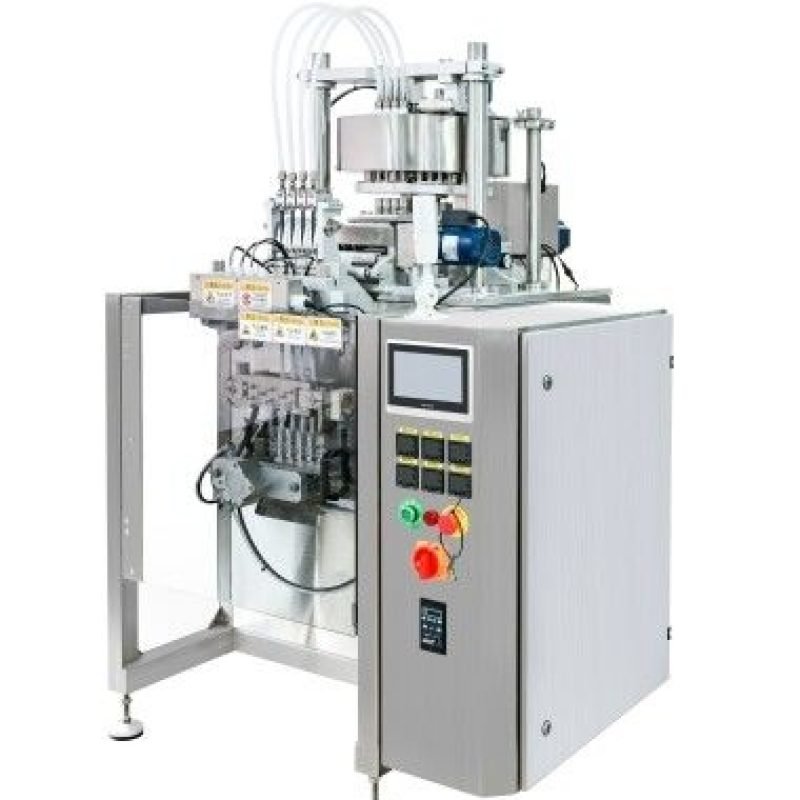

4-Lane Heat-Seal Nicotine Pouches Packing Machine
The 4-Lane Heat-Sealing Packaging Machine is a high-efficiency VFFS solution designed for producing compact nicotine pouches (also suitable for similar oral smoke granules) with stable back-seal heat sealing. Built with a robust metal structure in a silver finish, this equipment combines multi-lane output, consistent dosing, and reliable sealing/cutting performance to support continuous production in modern pouch manufacturing lines. With a four-lane format and a rated throughput up to 180 pouches per minute (depending on pouch specification and material characteristics), it helps manufacturers scale output while maintaining repeatable pouch size and seal quality. The machine is supplied in wooden packaging for protected shipment, supports customized configurations, and is available with a minimum order quantity of one set.
Product Advantages
Multi-lane productivity is the core strength of this machine. Four lanes run in parallel to boost output without expanding the footprint excessively, making it a practical upgrade for factories aiming to increase capacity quickly. The heat-sealing system is engineered for consistent back sealing with left-right overlap, supporting stable sealing width control and optional sealing patterns (plain or mesh) to match different pouch film requirements. Dual cutter sets provide flexible cutting styles, including flat cutting and serrated (saw-tooth) cutting, enabling manufacturers to choose the pouch edge style that best fits their product positioning and consumer experience.
For process stability and ease of operation, the control platform integrates an Inovance PLC and a 7-inch color touchscreen, offering clear parameter setting, fault prompts, and self-diagnosis. Alarm functions cover typical production risks such as film shortage, safety-door status, and abnormal operation, supported by a three-color warning tower light for quick on-site response. Temperature control is managed through a multi-channel Omron controller with temperature deviation alarms to reduce seal defects caused by heat fluctuation. A manual deviation correction system helps maintain film alignment, improving seal integrity and reducing waste during long runs.
In terms of build quality and hygiene, product-contact parts are made from SUS304 stainless steel, and the frame/electrical enclosure can be configured with SUS304 or aluminum alloy to align with GMP-oriented production environments. The dust removal device positioned above the horizontal sealing area (with vacuum cleaner) helps keep sealing zones clean, supporting more reliable seal performance and improved housekeeping. Pneumatic elements from Airtac and electrical components from Schneider or OMRON contribute to dependable long-term operation. The design also emphasizes maintainability through easy disassembly and cleaning structures, as well as a quick film splicing/attachment workbench to reduce downtime during roll changes.
Metering flexibility is supported through optional dosing modules tailored to material condition. For dry particles, the 4-lane horizontal screw metering device delivers controlled feeding with stepper-motor drive and air-assisted blowing. For wet granules, a 4-lane turntable (rotary cup) metering system provides adjustable cup volume and controlled auxiliary air discharge, helping handle sticky or moist materials more smoothly. Both approaches are designed to support the typical 0.4–0.6 g pouch fill range, with accuracy influenced by material flowability and operating speed.
Technical Specifications
| Product Type | 4-Lane Heat-Seal Nicotine Pouches Packing Machine (Back Seal) |
| Machine Material / Finish | Metal body, Silver color; product-contact parts SUS304 stainless steel |
| Lanes | 4 lanes |
| Output | Up to 180 pouches/min (application-dependent); typically 30–45 pouches/min per lane × 4 |
| Applicable Filling Material | Oral smoke particles / wet granules (as per sample) |
| Fill Range | 0.4–0.6 g per pouch |
| Measuring Accuracy | ≤ ±10% (depends on material characteristics and speed) |
| Pouch Size (Single Lane) | Length: 20–50 mm; Width: 13 mm (non-adjustable) |
| Film Width | Total film width: 120 mm; single-lane film width: 30 mm |
| Sealing Type | Back sealing, left-right overlap; without pattern by default |
| Seal Width | Vertical: 4 mm; Horizontal: 5 mm (subject to pouch drawing/sample) |
| Seal Pattern Options | No pattern / mesh pattern; 2 sets of heat sealers (horizontal); vertical sealing pattern optional per configuration |
| Cutting Method | Flat cutting and serrated cutting; 2 sets of cutters |
| Packaging Film Material | Composite films such as BOPP/PE |
| Control System | Inovance PLC + 7" color touchscreen; fault prompt & self-diagnosis; three-color alarm light |
| Temperature Control | Multi-channel Omron controller; temperature deviation alarm |
| Drive / Pulling | Horizontal seal pouch pulling with Inovance servo control |
| Film Feeding | Gravity-driven active film feeding; 4-row electric roller film separation |
| Deviation Correction | Manual web guiding/deviation correction system |
| Utilities (Main Machine Power) | AC 220V / 50Hz; approx. 3.0–3.5 kW (by configuration) |
| Compressed Air (Reference) | Typically 0.6–0.8 MPa; consumption varies by setup and scenario |
| Pneumatic / Electrical Components | Airtac pneumatics; Schneider or OMRON electrical components |
| Safety | Safety door with Panasonic door safety switch |
| Dust Control | Dust removal device above horizontal seal (includes vacuum cleaner) |
| Customization | Customized options available (metering device, sealing/cutting style, materials) |
| MOQ / Packing | MOQ: 1 set; Wooden packing for shipment |
Product Application Fields
This 4-lane heat-seal pouch packing machine is suitable for manufacturers producing nicotine pouches and other small-dose oral pouch products that require consistent weight filling and reliable heat sealing in composite films. It is also applicable to packaging fine granules or particles with similar flow behavior, including dry granules using a screw metering module and wet granules using a turntable/cup metering module. Typical application scenarios include nicotine pouch production lines, oral smoke particle packaging operations, and related consumer packaged goods where compact pouches, stable seals, and high throughput are essential.
