The Ultrasonic Four Lanes Fully Automatic Packaging Machine is designed for high-moisture powders and granules, such as oral smoke particles. Its dual-vibrator ultrasonic system significantly extends the lifespan of components compared to traditional single-vibrator machines, minimizing maintenance needs. Slow wire feeding and alloy blades ensure smooth, gap-free cutting, while the horizontal spring-based seal enhances cushioning and longevity. Optional heat sealing functionality allows flexible operation across different production requirements.
Key Advantages

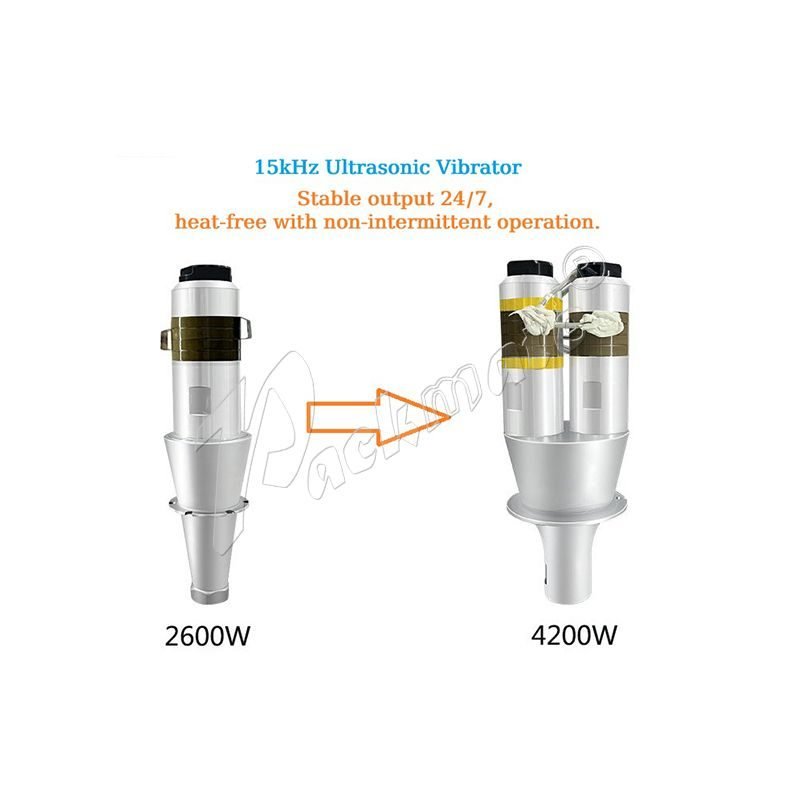

Extended Ultrasonic Component Lifespan
The dual-vibrator ultrasonic structure delivers over three times the lifespan of traditional single-vibrator systems, ensuring continuous production without frequent maintenance. Customers often report six months of operation without needing to replace vibrators, significantly reducing downtime and operational costs.
Precision Cutting and Smooth Sealing

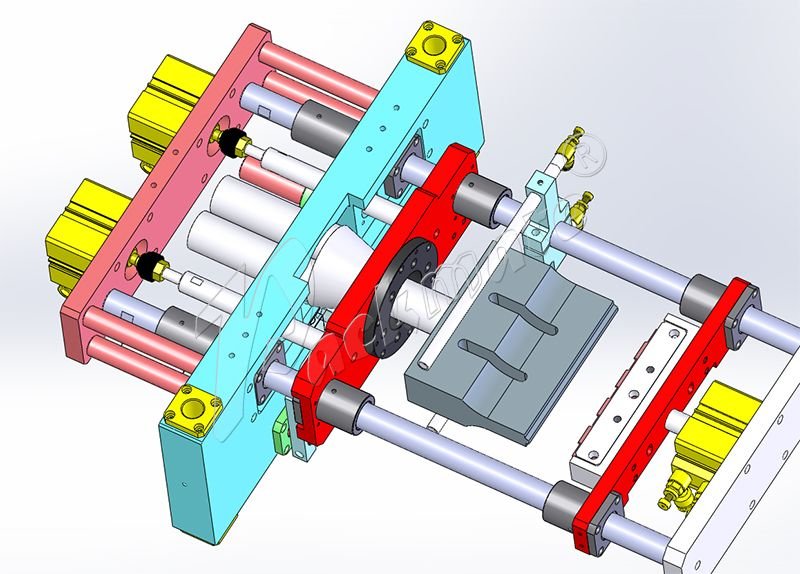

With slow wire feeding and alloy blades, the machine ensures string-free, gap-free cutting for clean, consistent packages. The spring-based horizontal seal reduces mechanical stress, extending the service life of both blades and vibrators while maintaining reliable and leak-proof sealing performance.
High Versatility and Heat Sealing Option
This machine supports both ultrasonic and heat sealing with simple reconfiguration. It accommodates high-moisture powders and granules, offers stable filling accuracy, and can be customized for various bag sizes, textures, and materials, enabling versatile packaging solutions for different industries.
Technical Parameters
| Parameter | Specification |
|---|---|
| Packaging Material | Oral smoke particles (per sample) |
| Packaging Capacity | 0.4–0.6g/bag |
| Measuring Accuracy | ≤ ±10% |
| Packaging Speed | 30–45 bags/min (per lane) × 4 lanes |
| Bag Size | Length: 20–50mm, Width: 13mm, Film width: 30mm per lane |
| Packaging Film Width | 120mm |
| Sealing Form | Back sealing without pattern, left and right overlapping |
| Sealing Width | Vertical: 4mm, Horizontal: 5mm |
| Horizontal Sealing Pattern | No pattern and mesh pattern, 2 sets of heat sealers |
| Cutting Method | Flat cutting and saw tooth cutting, 2 sets of cutters |
| Packaging Film | Composite packaging material (e.g., BOPP/PE) |
| Power Supply | AC 220V/50Hz, 3KW |
| Gas Source Consumption | 6Kg, 0.6 m³/min |
Customization
| Item | Specification |
|---|---|
| Brand Name | Packmate |
| Model Number | UB-4L |
| Place of Origin | China |
| Minimum Order Quantity | 1 unit |
| Packaging Details | 304 stainless steel |
| Delivery Time | 45 working days |
| Payment Terms | T/T |
| Supply Ability | 500 units/month |
| Touch Screen | 7 Inch Inovance color touchscreen |
| Sealing Type | Ultrasonic / Heat Sealing (optional) |
| Measuring Device 1 | LG-4 horizontal screw metering, 0.4–0.6g/bag |
| Measuring Device 2 | TB-4 wet particle turntable metering, 0.4–0.6g/bag |
| Air Consumption | 6Kg, 0.8 m³/min |
| Power | AC 220V/50Hz, 0.4–0.4Kw per metering device |
Applications
This four-lane ultrasonic packaging machine is ideal for industries requiring precise and high-speed packaging of high-moisture powders and granules, including:
-
Oral smoke and snus particle packaging
-
Pharmaceutical granules and powders
-
Moist nutraceutical powders and herbal products
-
Food powders and seasoning granules
Its dual-vibrator ultrasonic system, optional heat sealing, and high-speed performance ensure reliable, efficient, and hygienic packaging suitable for both small and large-scale operations.
